3013) Chandrayaan-3 Mission, ISRO India, Karnataka: Karnataka Postal Circle of India Post has issued a Special Cover (SC) from its Bengaluru Post Office: Date of Special Cover issue: 23.08.2023:

3013) Chandrayaan-3 Mission, ISRO India, Karnataka:   Karnataka Postal Circle of India Post has issued a Special Cover (SC) from its Bengaluru Post Office: Date of Special Cover issue: 23.08.2023:

Chandrayaan-3 is a follow-on mission to Chandrayaan-2 to demonstrate end-to-end capability in safe landing and roving on the lunar surface.

Chandrayaan-3 consists of an indigenous Lander module (LM), Propulsion module (PM) and a Rover with an objective of developing and demonstrating new technologies required for Inter planetary missions:

It consists of a Lander and Rover configuration

It was launched by LVM3 from SDSC SHAR, Sriharikota.

The propulsion module carried the lander and rover configuration till 100 km lunar orbit.

The propulsion module has Spectro-polarimetry of Habitable Planet Earth (SHAPE) payload to study the spectral and Polari metric measurements of Earth from the lunar orbit.

Lander payloadsChandra’s Surface Thermophysical Experiment (ChaSTE) to measure the thermal conductivity and temperature, Instrument for Lunar Seismic Activity (ILSA) for measuring the seismicity around the landing site; Langmuir Probe (LP) to estimate the plasma density and its variations. A passive Laser Retroreflector Array from NASA is accommodated for lunar laser ranging studies.

Rover payloadsAlpha Particle X-ray Spectrometer (APXS) and Laser Induced Breakdown Spectroscope (LIBS) for deriving the elemental composition in the vicinity of landing site.

The Lander had the capability to soft land at a specified lunar site and deploy the Rover which carried out in-situ chemical analysis of the lunar surface during the course of its mobility.

The Lander and the Rover have scientific payloads to carry out experiments on the lunar surface.

The main function of PM was to carry the LM from launch vehicle injection till final lunar 100 km circular polar orbit and separate the LM from PM.

Apart from this, the Propulsion Module also has one scientific payload as a value addition which was operated post separation of Lander Module.

The launcher identified for Chandrayaan-3 is LVM3 M4 which will place the integrated module in an Elliptic Parking Orbit (EPO) of size ~170 x 36500 km.

The mission objectives of Chandrayaan-3 are:

- To demonstrate Safe and Soft Landing on Lunar Surface

- To demonstrate Rover roving on the moon and

- To conduct in-situ scientific experiments.

To achieve the mission objectives, several advanced technologies are present in Lander such as:

Altimeters: Laser & RF based Altimeters.

Velocimeters: Laser Doppler Velocimeter & Lander Horizontal Velocity Camera.

Inertial Measurement: Laser Gyro based Inertial referencing and Accelerometer package.

Propulsion System: 800N Throttleable Liquid Engines, 58N attitude thrusters & Throttleable Engine Control Electronics.

Navigation, Guidance & Control (NGC): Powered Descent Trajectory design and associate software elements

Hazard Detection and Avoidance: Lander Hazard Detection & Avoidance Camera and Processing Algorithm

Landing Leg Mechanism.

To demonstrate the above said advanced technologies in earth condition, several Lander special tests have been planned and carried out successfully viz.

Integrated Cold Test - For the demonstration of Integrated Sensors & Navigation performance test using helicopter as test platform

Integrated Hot test – For the demonstration of closed loop performance test with sensors, actuators and NGC using Tower crane as test platform

Lander Leg mechanism performance test on a lunar simulant test bed simulating different touch down conditions.

The overall specifications for Chandrayaan-3 is provided below:

1. Mission Life (Lander & Rover) One lunar day (~14 Earth days)

2. Landing Site (Prime) 4 km x 2.4 km 69.367621 S, 32.348126 E

3. Science Payloads:

Lander:

Radio Anatomy of Moon Bound Hypersensitive ionosphere and Atmosphere (RAMBHA)

Chandra’s Surface Thermo physical Experiment (ChaSTE)

Instrument for Lunar Seismic Activity (ILSA)

Laser Retroreflector Array (LRA) Rover:

Alpha Particle X-Ray Spectrometer (APXS)

Laser Induced Breakdown Spectroscope (LIBS) Propulsion Module:

Spectro-polarimetry of HAbitable Planet Earth (SHAPE)

4. Two Module Configuration:

Propulsion Module (Carries Lander from launch injection to Lunar orbit)

Lander Module (Rover was accommodated inside the Lander)

5. Mass:

Propulsion Module: 2148 kg

Lander Module: 1752 kg including Rover of 26 kg

Total: 3900 kg

6. Power generation:

Propulsion Module: 758 W

Lander Module: 738W, WS with Bias

Rover: 50W

7. Communication:

Propulsion Module: Communicates with IDSN

Lander Module: Communicates with IDSN and Rover. Chandrayaan-2 Orbiter is also planned for contingency link.

Rover: Communicates only with Lander.

8. Lander Sensors:

Laser Inertial Referencing and Accelerometer Package (LIRAP)

Ka-Band Altimeter (KaRA)

Lander Position Detection Camera (LPDC)

LHDAC (Lander Hazard Detection & Avoidance Camera)

Laser Altimeter (LASA)

Laser Doppler Velocimeter (LDV)

Lander Horizontal Velocity Camera (LHVC)

Micro Star sensor

Inclinometer & Touchdown sensors

9. Lander Actuators Reaction wheels – 4 nos (10 Nms & 0.1 Nm)

10. Lander Propulsion System Bi-Propellant Propulsion System (MMH + MON3), 4 nos. of 800 N Throttleable engines & 8 nos. of 58 N; Throttleable Engine Control Electronics

11. Lander Mechanisms:

Lander leg

Rover Ramp (Primary & Secondary)

Rover

ILSA, Rambha & Chaste Payloads

Umbilical connector Protection Mechanism,

X- Band Antenna

12. Lander Touchdown specifications

Vertical velocity: ≤ 2 m / sec

Horizontal velocity: ≤ 0.5 m / sec

Slope: ≤ 12 deg

The objectives of scientific payloads planned on Chandrayaan-3 Lander Module and Rover are provided below:

Objectives:

1. Radio Anatomy of Moon Bound Hypersensitive ionosphere and Atmosphere (RAMBHA) Langmuir probe (LP) To measure the near surface plasma (ions and electrons) density and its changes with time

2. Chandra’s Surface Thermo physical Experiment (ChaSTE) To carry out the measurements of thermal properties of lunar surface near polar region.

3. Instrument for Lunar Seismic Activity (ILSA) To measure seismicity around the landing site and delineating the structure of the lunar crust and mantle.

4. LASER Retroreflector Array (LRA) It is a passive experiment to understand the dynamics of Moon system.

Rover Payloads:

Objectives:

1. LASER Induced Breakdown Spectroscope (LIBS) Qualitative and quantitative elemental analysis & To derive the chemical Composition and infer mineralogical composition to further our understanding of Lunar-surface.

2. Alpha Particle X-ray Spectrometer (APXS) To determine the elemental composition (Mg, Al, Si, K, Ca,Ti, Fe) of Lunar soil and rocks around the lunar landing site.

Propulsion Module Payload:

Objectives:

1. Spectro-polarimetry of HAbitable Planet Earth (SHAPE) Future discoveries of smaller planets in reflected light would allow us to probe into variety of Exo-planets which would qualify for habitability (or for presence of life).

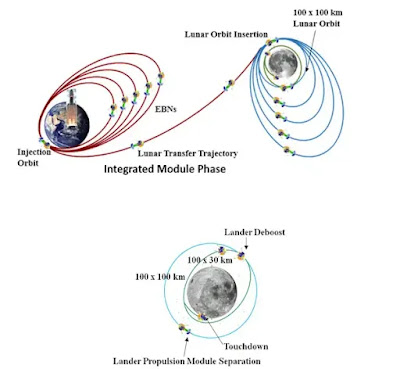

The Mission:

Elements

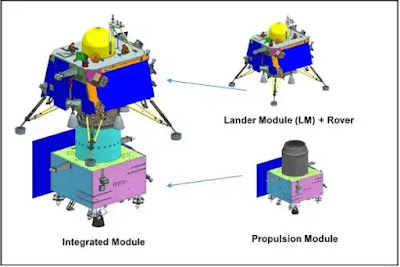

Integrated view

Components.

Lander Module

Chandrayaan 3 Lander

The various phases

The Rover
The Rover on Ramp

The Rover parts

The Rover Components

Chandrayaan 3 Lander - first images

A Special Cover (SC) issued by Karnataka Postal Circle of India Post:

The Front of the Special Cover (SC) is titled "Chandrayaan - 3" (in Hindi and English) at top left and centre. At left is an image of the Chandrayaan - 3 Rover exiting from the Moon Lander through the Ramp on the Moon's surface.

In the background of the Special Cover are seen the various phases on the Chandrayaan - 3 mission from "ignition - seperation - burning - separation - landing" (etc).

At top right is affixed a postage stamp of 500 Paise (Rs.5/-) titled - "EARTH" from a set of stamps issued by India Post on the Solar System in 2018.

The Moon Lander and the Rover are depicted on the Special Cancellation Stamp with the India Flag flying alongside. "CHANDRAYAAN - 3" (in Hindi & English) is inscribed on Cancellation Stamp which is of Bengaluru Post Office and the date of cancellation is - "23.02.2023" (the day/date of the landing on the Dark side of the moon.

The Back of the Special Cover (SC) gives a brief description, (in Hindi and English) as under:

" Chandrayaan - 3 is the third Indian lunar exploration mission under the Chandrayaan programme of ISRO. It consists of a lander named "Vikram" and a rover named "Pragyan".

This Special Cover is being released to commemorate India's historic lunar mission".

The Special Cover lists/shows images of the five major phases of the mission - from Launch of Chandrayaan - 3 to the moon lander.

The logo of India Post is printed in the lower half of the Back.

The Special Cover has been approved/issued by the Karnataka Postal Circle of India Post vide its Approval number - KTK/26/2023.
